TERMINALES ELECTRICAS DE COBRE CAÑÓN CORTO
Terminales eléctricas a compresion de Cobre fabricadas de Cobre Electrolítico de alta pureza con recubrimiento de Estaño que permite un excelente flujo de energía, es resistente a la corrosión e incluye cubierta de plástico para crear una unión más segura.
Disponibles en color rojo para calibres del 22 al 16 AWG, azul del 16 al 14 AWG, Negro del 14 al 12 AWG y Amarillo del 12 al 10 AWG.
Se utilizan en sistemas eléctricos de muy bajo amperaje principalmente en tableros de control y sistemas de iluminación.
Disponibles en color rojo para calibres del 22 al 16 AWG, azul del 16 al 14 AWG, Negro del 14 al 12 AWG y Amarillo del 12 al 10 AWG.
Se utilizan en sistemas eléctricos de muy bajo amperaje principalmente en tableros de control y sistemas de iluminación.
| Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Conductor | Código de Color | Largo de Cable Desnudo | Unidades (pulg.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|

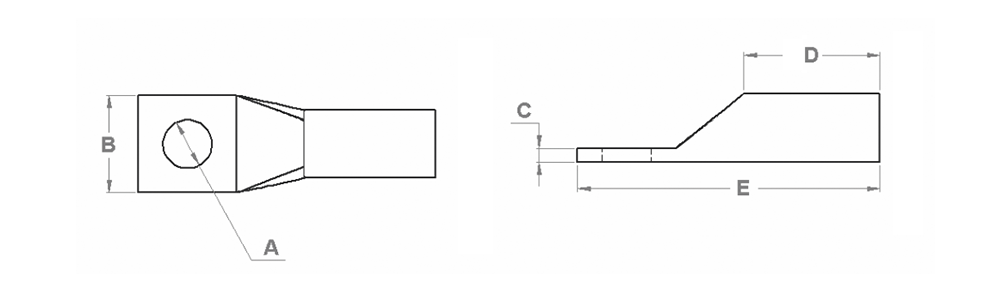

| AWG | mm² | (A) Barreno de Fijación | (B) Ancho de Contacto | (C) Espesor del Área de Contacto | (D) Largo del Barril | (E) Largo Total | |||||
| DCCS8-14 | LCA8-14 | YA8C-L1 | #8AWG #8 Weld 37/24 #6 Solid | 10 | rojo | 7/16" | 1/4" | 0.44" | 0.08" | 0.44" | 1.26" |
| DCCS8-10 | LCA8-10 | YA8C-L | #8AWG #8 Weld 37/24 #6 Solid | 10 | rojo | 7/16" | ****8-10 | 0.41" | 0.08" | 0.44" | 1.16" |
| DCCS6-10 | LCA6-10 | YA6C-L1 | #6 AWG | 14 | azul | 5/8" | ****8-10 | 0.41" | 0.09" | 0.54" | .99" |
| DCCS6-14 | LCA6-14 | YA6C-L | #6 AWG | 14 | azul | 5/8" | 1/4" | 0.45" | 0.08" | 0.54" | 1.18" |
| DCCS6-56 | LCA6-56 | YA6C-L3 | #6 AWG | 14 | azul | 5/8" | 5/16" | 0.52" | 0.07" | 0.54" | 1.24" |
| DCCS4-14 | LCA4-14 | YA4C-L | #4 AWG | 22 | gris | 7/8" | 1/4" | 0.50" | 0.09" | 0.81" | 1.74" |
| DCCS4-56 | LCA4-56 | YA4C-L3 | #4 AWG | 22 | gris | 7/8" | 5/16" | 0.58" | 0.08" | 0.81" | 1.92" |
| DCCS4-38 | LCA4-38 | YA4C-L4 | #4 AWG | 22 | gris | 7/8" | 3/8" | 0.58" | 0.08" | 0.81" | 1.92" |
| DCCS2-14 | LCA2-14 | YA2C-L2 | #2 AWG | 35 | café | 15/16" | 1/4" | 0.61" | 0.11" | 0.88" | 1.88" |
| DCCS2-56 | LCA2-56 | YA2C-L | #2 AWG | 35 | café | 15/16" | 5/16" | 0.61" | 0.11" | 0.88" | 1.93" |
| DCCS2-38 | LCA2-38 | YA2C-L4 | #2 AWG | 35 | café | 15/16" | 3/8" | 0.61" | 0.11" | 0.88" | 2.06" |
| DCCS2-12 | LCA2-12 | YA2C-L6 | #2 AWG | 35 | café | 15/16" | 1/2" | 0.73" | 0.09" | 0.88" | 2.32" |
| DCCS1/0-56 | LCA1/0-56 | YA25-L | 1/0 AWG | 54 | rosa | 15/16" | 5/16" | 0.75" | 0.12" | 0.88" | 1.96" |
| DCCS1/0-38 | LCA1/0-38 | YA25-L4 | 1/0 AWG | 54 | rosa | 15/16" | 3/8" | 0.75" | 0.12" | 0.88" | 2.09" |
| DCCS1/0-12 | LCA1/0-12 | YA25-L6 | 1/0 AWG | 54 | rosa | 15/16" | 1/2" | .75" | 0.12" | 0.88" | 2.34" |
| DCCS2/0-38 | LCA2/0-38 | YA26-L | 2/0 AWG | 70 | negro | 1" | 3/8" | 0.83" | 0.12" | 0.94" | 2.19" |
| DCCS2/0-12 | LCA2/0-12 | YA26-L6 | 2/0 AWG | 70 | negro | 1" | 1/2" | 0.83" | 0.12" | 0.94" | 2.44" |
| DCCS3/0-38 | LCA3/0-38 | YA27-L4 | 3/0 AWG | 86 | naranja | 1-1/16" | 3/8" | 0.91" | 0.13" | 1.00" | 2.29" |
| DCCS3/0-12 | LCA3/0-12 | YA27-L | 3/0 AWG | 86 | naranja | 1-1/16" | 1/2" | 0.91" | 0.13" | 1.00" | 2.54" |
| DCCS4/0-38 | LCA4/0-38 | YA28-L4 | 4/0 AWG | 108 | morado | 1-1/8" | 3/8" | 1.02" | 0.14" | 0.88" | 2.21" |
| DCCS4/0-12 | LCA4/0-12 | YA28-L | 4/0 AWG | 108 | morado | 1-1/8" | 1/2" | 1.02" | 0.14" | 0.88" | 2.46" |
| DCCS4/0-58 | LCA4/0-58 | YA28-L17 | 4/0 AWG | 108 | morado | 1-1/8" | 5/8" | 1.02" | 0.14" | 0.88" | 2.71" |
| DCCS250-12 | LCA250-12 | YA29-L | 250 kcmil | 127 | amarillo | 1-1/8" | 1/2" | 1.11" | 0.16" | 1.06" | 2.67" |
| DCCS300-12 | LCA300-12 | YA30-L | 300 kcmil | 150 | blanco | 1-1/16" | 1/2" | 1.20" | 0.16" | 1.03" | 2.69" |
| DCCS350-38 | LCA350-38 | YA31-L11 | 350 kcmil | 185 | rojo | 1-3/16" | 3/8" | 1.29" | 0.18" | 1.06" | 2.50" |
| DCCS350-12 | LCA350-12 | YA31-L | 350 kcmil | 185 | rojo | 1-3/16" | 1/2" | 1.29" | 0.18" | 1.06" | 2.75" |
| DCCS400-58 | LCA400-58 | YA32-L | 400 kcmil | 203 | azul | 1-1/4" | 5/8" | 1.38" | 0.19" | 1.19" | 3.18" |
| DCCS500-38 | LCA500-38 | YA34-L37 | 500 kcmil | 240 | café | 1-7/16" | 3/8" | 1.55" | 0.23" | 1.27" | 2.87" |
| DCCS500-58 | LCA500-58 | YA34-L | 500 kcmil | 240 | café | 1-7/16" | 5/8" | 1.55" | 0.23" | 1.27" | 3.37" |
| DCCS500-12 | LCA500-12 | YA34-L6 | 500 kcmil | 240 | café | 1-7/16" | 1/2" | 1.55" | 0.23" | 1.27" | 3.12" |
HERRAMIENTA DE CRIMPADO RECOMENDADA
| Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Mecánica | Hidráulica | |||||
|---|---|---|---|---|---|---|---|---|---|
| Hexagonal | Hexagonal | Hexagonal | Hexagonal | Hexagonal | Indentación | Indentación | |||
| DCCS8-14 | LCA8-14 | YA8C-L1 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH12-10/120 | |||
| DCCS8-10 | LCA8-10 | YA8C-L | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH12-10/120 | |||
| DCCS6-10 | LCA6-10 | YA6C-L1 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS6-14 | LCA6-14 | YA6C-L | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS6-56 | LCA6-56 | YA6C-L3 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS4-14 | LCA4-14 | YA4C-L | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS4-56 | LCA4-56 | YA4C-L3 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS4-38 | LCA4-38 | YA4C-L4 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2-14 | LCA2-14 | YA2C-L2 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2-56 | LCA2-56 | YA2C-L | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2-38 | LCA2-38 | YA2C-L4 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2-12 | LCA2-12 | YA2C-L6 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS1/0-56 | LCA1/0-56 | YA25-L | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS1/0-38 | LCA1/0-38 | YA25-L4 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS1/0-12 | LCA1/0-12 | YA25-L6 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2/0-38 | LCA2/0-38 | YA26-L | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2/0-12 | LCA2/0-12 | YA26-L6 | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS3/0-38 | LCA3/0-38 | YA27-L4 | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS3/0-12 | LCA3/0-12 | YA27-L | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS4/0-38 | LCA4/0-38 | YA28-L4 | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS4/0-12 | LCA4/0-12 | YA28-L | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS4/0-58 | LCA4/0-58 | YA28-L17 | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS250-12 | LCA250-12 | YA29-L | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS300-12 | LCA300-12 | YA30-L | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS350-38 | LCA350-38 | YA31-L11 | DCM6-16/300 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS350-12 | LCA350-12 | YA31-L | DCM6-16/300 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS400-58 | LCA400-58 | YA32-L | DCM6-16/300 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS500-38 | LCA500-38 | YA34-L37 | DCM6-16/300 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS500-58 | LCA500-58 | YA34-L | DCM6-16/300 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS500-12 | LCA500-12 | YA34-L6 | DCM6-16/300 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
