TERMINALES ELECTRICAS DE COBRE CAÑÓN LARGO
Las terminales eléctricas de compresión están fabricadas de 100% Cobre electrolítico con recubrimiento de Estaño, lo cual permite un excelente flujo de energía y una excelente resistencia a la corrosión. Comprimen cables (Cobre y/o Aluminio).
Se usan en tableros de distribución y control eléctrico, en motores, transformadores, puestas a tierra, interruptores, arrancadores y en cualquier equipo eléctrico que acepte o entregue energía eléctrica.
Se usan en tableros de distribución y control eléctrico, en motores, transformadores, puestas a tierra, interruptores, arrancadores y en cualquier equipo eléctrico que acepte o entregue energía eléctrica.
| Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Calibre del Cable | Código de Color | Dimensiones (pulg.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

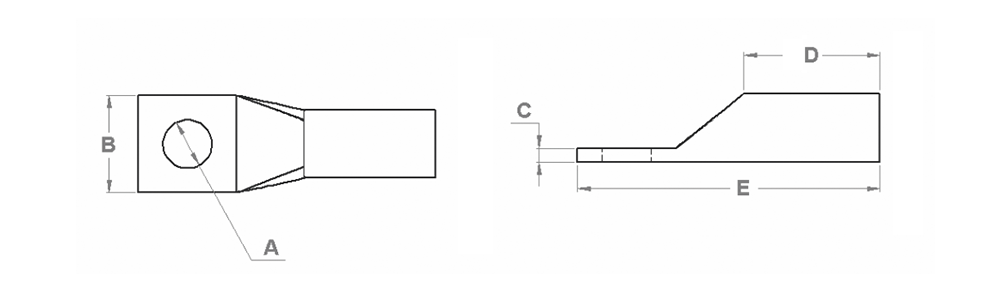

| AWG | mm² | Largo de Cable Desnudo | (A) Barreno de Fijación | (B) Ancho de Contacto | (C) Espesor del Área de Contacto | (D) Largo del Barril | (E) Largo Total | ||||
| DCCL6-14 | LCB6-14 | YA6C | #6 AWG | 14 | azul | 1-3/16" | 1/4" | 0.41" | 0.09" | 1.12" | 1.81" |
| DCCL4-14 | LCB4-14 | YA4C | #4 AWG | 22 | gris | 1-3/16" | 1/4" | 0.50" | 0.09" | 1.12" | 1.87" |
| DCCL2-56 | LCB2-56 | YA2C | #2 AWG | 35 | café | 1-5/16" | 5/16" | 0.61" | 0.11" | 1.25" | 2.29" |
| DCCL1-56 | LCB1-56 | YA1C | #1 AWG | 50 | verde | 1-7/16" | 5/16" | 0.68" | 0.10" | 1.38" | 2.45" |
| DCCL1/0-56 | LCB1/0-56 | YA25 | 1/0 AWG | 54 | rosa | 1-7/16" | 5/16" | 0.75" | 0.12" | 1.38" | 2.48" |
| DCCL1/0-38 | LCB1/0-38 | YA25TC38 | 1/0 AWG | 54 | rosa | 1-7/16" | 3/8" | 0.75" | 0.12" | 1.38" | 2.61" |
| DCCL1/0-12 | LCB1/0-12 | YA25N | 1/0 AWG | 54 | rosa | 1-7/16" | 1/2" | 0.81" | 0.11" | 1.38" | 3.05" |
| DCCL2/0-38 | LCB2/0-38 | YA26 | 2/0 AWG | 70 | negro | 1-9/16" | 3/8" | 0.83" | 0.12" | 1.50" | 2.77" |
| DCCL2/0-12 | LCB2/0-12 | YA26N | 2/0 AWG | 70 | negro | 1-9/16" | 1/2" | 0.83" | 0.12" | 1.50" | 3.21" |
| DCCL3/0-12 | LCB3/0-12 | YA27 | 3/0 AWG | 86 | naranja | 1-9/16" | 1/2" | 0.91" | 0.13" | 1.50" | 3.06" |
| DCCL4/0-38 | LCB4/0-38 | YA28TC38 | 4/0 AWG | 108 | morado | 1-1/16" | 3/8" | 1.02" | 0.14" | 1.62" | 2.98" |
| DCCL4/0-12 | LCB4/0-12 | YA28 | 4/0 AWG | 108 | morado | 1-1/16" | 1/2" | 1.02" | 0.14" | 1.62" | 3.23" |
| DCCL250-12 | LCB250-12 | YA29 | 250 kcmil | 127 | amarillo | 1-1/16" | 1/2" | 1.11" | 0.16" | 1.62" | 3.26" |
| DCCL300-12 | LCB300-12 | YA30 | 300 kcmil | 150 | blanco | 2-1/16" | 1/2" | 1.20" | 0.16" | 2.00" | 3.69" |
| DCCL350-12 | LCB350-12 | YA31 | 350 kcmil | 185 | rojo | 2-1/16" | 1/2" | 1.29" | 0.18" | 2.00" | 3.73" |
| DCCL400-12 | LCB400-12 | YA32N | 400 kcmil | 203 | azul | 2-3/16" | 1/2" | 1.38" | 0.19" | 2.12" | 4.09" |
| DCCL400-58 | LCB400-58 | YA32 | 400 kcmil | 203 | azul | 2-3/16" | 5/8" | 1.38" | 0.19" | 2.12" | 4.15" |
| DCCL500-58 | LCB500-58 | YA34N | 500 kcmil | 240 | café | 2-5/16" | 5/8" | 1.52" | 0.23" | 2.25" | 4.32" |
| DCCL500-58 | LCB500-58 | YA34 | 500 kcmil | 240 | café | 2-5/16" | 5/8" | 1.52" | 0.23" | 2.25" | 4.39" |
HERRAMIENTA DE CRIMPADO RECOMENDADA
| Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Mecánica | Hidráulica | |||||
|---|---|---|---|---|---|---|---|---|---|
| Hexagonal | Hexagonal | Hexagonal | Hexagonal | Hexagonal | Indentación | Indentación | |||
| DCCL6-14 | LCB6-14 | YA6C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH12-10/120 | |||
| DCCL4-14 | LCB4-14 | YA4C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | ||
| DCCL2-56 | LCB2-56 | YA2C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1-56 | LCB1-56 | YA1C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1/0-56 | LCB1/0-56 | YA25 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1/0-38 | LCB1/0-38 | YA25TC38 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1/0-12 | LCB1/0-12 | YA25N | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL2/0-38 | LCB2/0-38 | YA26 | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL2/0-12 | LCB2/0-12 | YA26N | DCM3 - 10 /150 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL3/0-12 | LCB3/0-12 | YA27 | DCM3 - 10 /150 | DCM - 6/120 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 | |
| DCCL4/0-38 | LCB4/0-38 | YA28TC38 | DCM3 - 10 /150 | DCM - 6/120 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 | |
| DCCL4/0-12 | LCB4/0-12 | YA28 | DCM3 - 10 /150 | DCM - 6/120 | DCH16 - 16/300 | DCH12-10/120 | DCHR16-16/150 | DCHR16-16/200 | |
| DCCL250-12 | LCB250-12 | YA29 | DCM3 - 10 /150 | DCM - 6/120 | DCH16 - 16/300 | DCH30 - 150/630 | DCHR16-16/150 | DCHR16-16/200 | |
| DCCL300-12 | LCB300-12 | YA30 | DCM3 - 10 /150 | DCM - 6/120 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 | |
| DCCL350-12 | LCB350-12 | YA31 | DCM6-16/300 | DCM - 6/120 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 | |
| DCCL400-12 | LCB400-12 | YA32N | DCM6-16/300 | DCM - 6/120 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 | |
| DCCL400-58 | LCB400-58 | YA32 | DCM6-16/300 | DCM - 6/120 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 | |
| DCCL500-58 | LCB500-58 | YA34N | DCM6-16/300 | DCM - 6/120 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | ||
| DCCL500-58 | LCB500-58 | YA34 | DCM6-16/300 | DCM - 6/120 | DCH16 - 16/300 | DCH30 - 150/630 | DCH16 - 10/240 | ||
