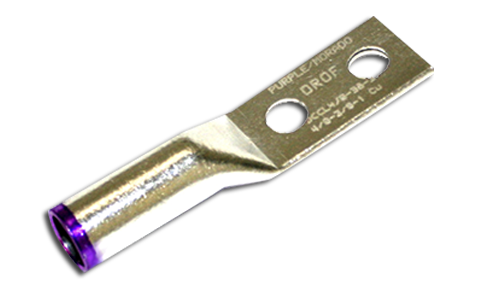

TERMINALES ELECTRICAS DE COBRE CAÑÓN LARGO 2 BARRENOS
Las terminales eléctricas de compresión están fabricadas de 100% Cobre electrolítico con recubrimiento de Estaño, lo cual permite un excelente flujo de energía y una excelente resistencia a la corrosión. Comprimen cables (Cobre y/o Aluminio).
Se usan en tableros de distribución y control eléctrico, en motores, transformadores, puestas a tierra, interruptores, arrancadores y en cualquier equipo eléctrico que acepte o entregue energía eléctrica.
Se usan en tableros de distribución y control eléctrico, en motores, transformadores, puestas a tierra, interruptores, arrancadores y en cualquier equipo eléctrico que acepte o entregue energía eléctrica.
BARRENOS DE FIJACIÓN DE 1/2"
| Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Conductor | Código Color | Largo Cable Desnudo | Dimensiones (pulg.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

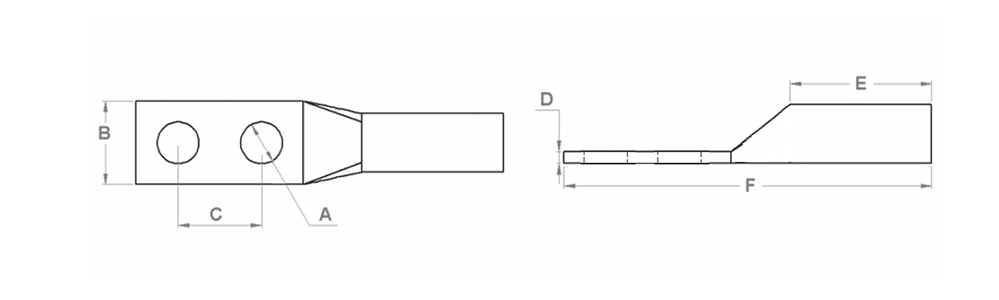

| AWG | mm² | (A) Barreno Fijación | (B) Ancho Contacto | (C) Espacio Barrenos | (D) Espesor Contacto | (E) Largo Barril | (F) Largo Total | |||||
| DCCL2-12-134 | LCC2-12 | YA2C2N | #2 AWG | 35 | café | 1-5/16" | 1/2" | 0.81" | 1-3/4" | 0.12" | 1.25" | 4.64" |
| DCCL1/0-12-134 | LCC1/0-12 | YA252N | 1/0 AWG | 54 | rosa | 1-7/16" | 1/2" | 0.81" | 1-3/4" | 0.11" | 1.38" | 4.81" |
| DCCL2/0-12-134 | LCC2/0-12 | YA262N | 2/0 AWG | 70 | negro | 1-9/16" | 1/2" | 0.83" | 1-3/4" | 0.12" | 1.50" | 4.97" |
| DCCL3/0-12-134 | LCC3/0-12 | YA272N | 3/0 AWG | 86 | naranja | 1-9/16" | 1/2" | 0.91" | 1-3/4" | 0.13" | 1.50" | 5.01" |
| DCCL4/0-12-134 | LCC4/0-12 | YA282N | 4/0 AWG | 108 | morado | 1-11/16" | 1/2" | 1.02" | 1-3/4" | 0.14" | 1.62" | 5.17" |
| DCCL250-12-134 | LCC250-12 | YA292N | 250 kcmil | 120 | amarillo | 1-11/16" | 1/2" | 1.11" | 1-3/4" | 0.16" | 1.62" | 5.21" |
| DCCL300-12-134 | LCC300-12 | YA302N | 300 kcmil | 150 | blanco | 2" | 1/2" | 1.20" | 1-3/4" | 0.16" | 2.00" | 5.64" |
| DCCL350-12-134 | LCC350-12 | YA312N | 350 kcmil | 185 | rojo | 2-1/16" | 1/2" | 1.29" | 1-3/4" | 0.18" | 2.00" | 5.68" |
| DCCL400-12-134 | LCC400-12 | YA322N | 400 kcmil | 203 | azul | 2-3/16" | 1/2" | 1.38" | 1-3/4" | 0.19" | 2.12" | 5.85" |
| DCCL500-12-134 | LCC500-12 | YA342N | 500 kcmil | 240 | café | 2-1/2" | 1/2" | 1.55" | 1-3/4" | 0.23" | 2.25" | 6.06" |
| DCCL750-12-134 | LCC750-12 | YA392N | 750 kcmil | 381 | negro | 2-3/4" | 1/2" | 1.91" | 1-3/4" | 0.27" | 2.88" | 6.87" |
| DCCL1000-12-134 | LCC1000-12 | YA442N | 1000 kcmil | 500 | blanco | 3-1/16" | 1/2" | 2.17" | 1-3/4" | 0.33" | 3.00" | 7.14" |
HERRAMIENTA DE CRIMPADO RECOMENDADA
| Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Mecánica | Hydráulica | |||||
|---|---|---|---|---|---|---|---|---|---|
| Hexagonal | Hexagonal | Hexagonal | Hexagonal | Hexagonal | Indentación | Indentación | |||
| DCCL2-12-134 | LCC2-12 | YA2C2N | DCM-6/50 | DCM-1/16 | DCH8-4/70 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1/0-12-134 | LCC1/0-12 | YA252N | DCM - 6/120 | DCM6-16/300 | DCH8-4/70 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL2/0-12-134 | LCC2/0-12 | YA262N | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL3/0-12-134 | LCC3/0-12 | YA272N | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL4/0-12-134 | LCC4/0-12 | YA282N | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL250-12-134 | LCC250-12 | YA292N | DCM3 - 10 /150 | DCM6-16/300 | DCH16 - 16/300 | DCH20 - 16/400 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL300-12-134 | LCC300-12 | YA302N | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16 - 10/240 | DCHR16-16/150 | DCHR16-16/200 | |
| DCCL350-12-134 | LCC350-12 | YA312N | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16 - 10/240 | DCHR16-16/150 | DCHR16-16/200 | |
| DCCL400-12-134 | LCC400-12 | YA322N | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16 - 10/240 | DCHR16-16/150 | ||
| DCCL500-12-134 | LCC500-12 | YA342N | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16 - 10/240 | DCHR16-16/150 | ||
| DCCL750-12-134 | LCC750-12 | YA392N | DCH55 - 400/1000 | ||||||
| DCCL1000-12-134 | LCC1000-12 | YA442N | DCH55 - 400/1000 | ||||||
BARRENOS DE FIJACIÓN 3/8
| Catalogo DROF | Catalogo Panduit | Catalogo Burndy | Conductor | Codigo de Color | Largo de Cable Desnudo | Dimensiones | ||||||
| AWG | mm² | (A) Barreno de Fijación |
(B) Ancho de Contacto |
( C) Espacio entre Barrenos |
(D) Espesor del Área de Contacto |
(E) Largo del Barril |
(F) Largo Total |
|||||
| DCCL6-38-1 | LCC6-38 | YA6C-2TC38 | 6 AWG | 16 | azul | 1-3/16" | 3/8" | .63" | 1" | .06" | 1.12" | 3.22" |
| DCCL4-38-1 | LCC4-38 | YA4C-2TC38 | 4 AWG | 25 | gris | 1-3/16" | 3/8" | .56" | 1" | .08" | 1.12" | 3.26" |
| DCCL2-38-1 | LCC2-38 | YA2C-2TC38 | 2 AWG | 35 | café | 1-5/16" | 3/8" | .60" | 1" | .11" | 1.25" | 3.42" |
| DCCL1-38-1 | LCC1-38 | YA1C-2TC38 | 1 AWG | 50 | verde | 1-1/2" | 3/8" | .68" | 1" | .10" | 1.38" | 3.59" |
| DCCL1/0-38-1 | LCC1/0-38 | YA25-2TC38 | 1/0 AWG | 54 | rosa | 1-7/16" | 3/8" | .75" | 1" | .12" | 1.38" | 3.62" |
| DCCL2/0-38-1 | LCC2/0-38 | YA26-2TC38 | 2/0 AWG | 70 | negro | 1-9/16" | 3/8" | .83" | 1" | .12" | 1.50" | 3.78" |
| DCCL3/0-38-1 | LCC3/0-38 | YA27-2TC38 | 3/0 AWG | 86 | naranja | 1-9/16" | 3/8" | .90" | 1" | .12" | 1.50" | 3.82" |
| DCCL4/0-38-1 | LCC4/0-38 | YA28-2TC38 | 4/0 AWG | 108 | morado | 1-11/16" | 3/8" | 1.02" | 1" | .14" | 1.62" | 3.99" |
| DCCL250-38-1 | LCC250-38 | YA29-2TC38 | 250 MCM | 127 | amarillo | 1-11/16" | 3/8" | 1.10" | 1" | .16" | 1.62" | 4.02" |
| DCCL300-38-1 | LCC300-38 | YA30-2TC38 | 300 MCM | 150 | blanco | 2" | 3/8" | 1.20" | 1" | .16" | 2.00" | 4.45" |
| DCCL350-38-1 | LCC350-38 | YA31-2TC38 | 350 MCM | 185 | rojo | 2-1/16" | 3/8" | 1.29" | 1" | .18" | 2.00" | 4.49" |
| DCCL400-38-1 | LCC400-38 | YA32-2TC38 | 400 MCM | 203 | azul | 2-3/16" | 3/8" | 1.38" | 1" | .19" | 2.12" | 4.66" |
| DCCL500-38-1 | LCC500-38 | YA34-2TC38 | 500 MCM | 240 | café | 2-1/12" | 3/8" | 1.55" | 1" | .23" | 2.25" | 4.90" |
| DCCL600-38-1 | LCC600-38 | YA36-2TC38 | 600 MCM | 300 | verde | 2-3/4" | 3/8" | 1.74" | 1" | .26" | 2.69" | 5.59" |
| DCCL750-38-1 | LCC750-38 | YA39-2TC38 | 750 MCM | 381 | negro | 2-3/4" | 3/8" | 1.91" | 1" | .27" | 2.88" | 5.87" |
HERRAMIENTA DE CRIMPADO RECOMENDADA
| Catalogo DROF | Catalogo Panduit | Catalogo Burndy | Mecánica | Hidráulica | |||||
|---|---|---|---|---|---|---|---|---|---|
| Hexagonal | Hexagonal | Hexagonal | Hexagonal | Hexagonal | Indentación | Indentación | |||
| DCCL6-38-1 | LCC6-38 | YA6C-2TC38 | DCM-6/50 | DCM-1/16 | DCH8-4/70 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 | |
| DCCL4-38-1 | LCC4-38 | YA4C-2TC38 | DCM6-16/300 | ||||||
| DCCL2-38-1 | LCC2-38 | YA2C-2TC38 | DCH12-10/120 | ||||||
| DCCL1-38-1 | LCC1-38 | YA1C-2TC38 | DCM3 - 10 /150 | ||||||
| DCCL1/0-38-1 | LCC1/0-38 | YA25-2TC38 | |||||||
| DCCL2/0-38-1 | LCC2/0-38 | YA26-2TC38 | |||||||
| DCCL3/0-38-1 | LCC3/0-38 | YA27-2TC38 | |||||||
| DCCL4/0-38-1 | LCC4/0-38 | YA28-2TC38 | |||||||
| DCCL250-38-1 | LCC250-38 | YA29-2TC38 | DCH20 - 16/400 | ||||||
| DCCL300-38-1 | LCC300-38 | YA30-2TC38 | DCH30 - 150/630 | DCH16 - 10/240 | |||||
| DCCL350-38-1 | LCC350-38 | YA31-2TC38 | |||||||
| DCCL400-38-1 | LCC400-38 | YA32-2TC38 | |||||||
| DCCL500-38-1 | LCC500-38 | YA34-2TC38 | |||||||
| DCCL600-38-1 | LCC600-38 | YA36-2TC38 | |||||||
| DCCL750-38-1 | LCC750-38 | YA39-2TC38 | |||||||
