Características

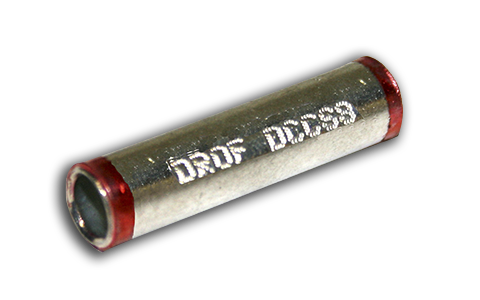

Los empalmes eléctricos de compresión están fabricados de 100% Cobre electrolítico con recubrimiento de Estaño, lo cual permite un excelente flujo de energía y una excelente resistencia a la corrosión. Comprimen cables (Cobre y/o Aluminio).
Se usan en tableros de distribución y control eléctrico, en motores, transformadores, puestas a tierra, interruptores, arrancadores y en cualquier equipo eléctrico que acepte o entregue energía eléctrica.
*Medidas en pulgadas

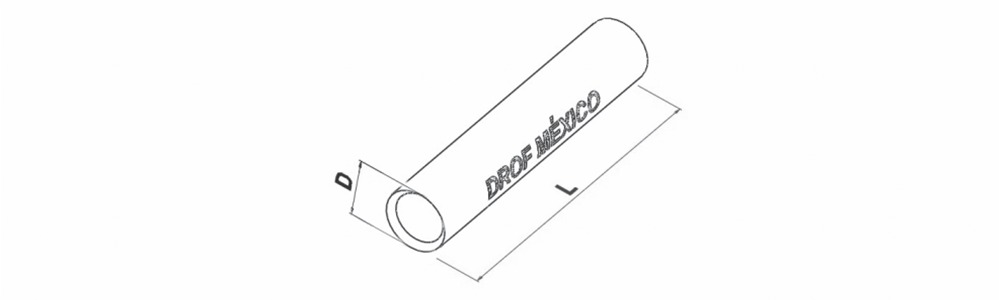

Dimensiones
| Código | Catálogo DROF | Catálogo Burndy | Conductor AWG/kcmil | Conductor mm² | Código de color | Longitud de cable desnudo (pulg) | D (pulg) | L (pulg) |
|---|
| DCCS8 | DCCS8 | YS8CL | 8 | 8 | rojo | 1/2 | 0.27 | 1 |
| DCCS6 | DCCS6 | YS6CL | 6 | 13 | azul | 7/8 | 0.3 | 1.75 |
| DCCS4 | DCCS4 | YS4CL | 4 | 21 | gris | 7/8 | 0.35 | 1.75 |
| DCCS2 | DCCS2 | YS2CL | 2 | 34 | café | 15/16 | 0.41 | 2 |
| DCCS1/0 | DCCS1/0 | YS25L | 1/0 | 53 | rosa | 15/16 | 0.53 | 2.08 |
| DCCS2/0 | DCCS2/0 | YS26L | 2/0 | 67 | negro | 1 | 0.57 | 2.17 |
| DCCS3/0 | DCCS3/0 | YS27L | 3/0 | 85 | naranja | 1-1/16 | 0.62 | 2.3 |
| DCCS4/0 | DCCS4/0 | YS28L | 4/0 | 107 | morado | 1-1/16 | 0.68 | 2.32 |
| DCCS250 | DCCS250 | YS29L | 250 | 127 | amarillo | 1-1/8 | 0.75 | 2.46 |
| DCCS300 | DCCS300 | YS30L | 300 | 152 | blanco | 1-1/8 | 0.81 | 2.47 |
| DCCS350 | DCCS350 | YS31L | 350 | 177 | rojo | 1-3/16 | 0.86 | 2.6 |
| DCCS400 | DCCS400 | YS32L | 400 | 203 | azul | 1-1/4 | 0.91 | 2.74 |
| DCCS500 | DCCS500 | | 500 | 253 | café | 1-7/16 | 1 | 3.15 |
| DCCS600 | DCCS600 | YS36L | 600 | 304 | verde | 1-7/16 | 1.25 | 3.22 |
| DCCS750 | DCCS750 | YS39L | 750 | 380 | negro | 1-11/16 | 1.35 | 3.72 |
| DCCS1000 | DCCS1000 | YS44L | 1000 | 507 | blanco | 1-15/16 | 1.56 | 4.28 |
Herramienta de crimpado recomendada
| Código | Catálogo DROF | Catálogo Burndy | Mecánica Hexagonal 1 | Mecánica Hexagonal 2 | Hidráulica Hexagonal 1 | Hidráulica Hexagonal 2 | Hidráulica Hexagonal 3 | Hidráulica Indentación 1 | Hidráulica Indentación 2 |
|---|
| DCCS8 | DCCS8 | YS8CL | DCM-6/50 | DCM-1/16 | DCH8-4/70 | | | | |
| DCCS6 | DCCS6 | YS6CL | DCM - 6/120 | DCM6-16/300 | DCH8-4/70 | DCH12-10/120 | DCH16-10/300 | | |
| DCCS4 | DCCS4 | YS4CL | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2 | DCCS2 | YS2CL | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS1/0 | DCCS1/0 | YS25L | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH12-10/120 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS2/0 | DCCS2/0 | YS26L | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH20 - 16/400 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS3/0 | DCCS3/0 | YS27L | DCM - 6/120 | DCM6-16/300 | DCH16 - 16/300 | DCH20 - 16/400 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS4/0 | DCCS4/0 | YS28L | DCM3 - 10 /150 | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16-10/300 | DCHR16-16/150 | DCHR16-16/200 |
| DCCS250 | DCCS250 | YS29L | DCM3 - 10 /150 | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16-10/300 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS300 | DCCS300 | YS30L | DCM3 - 10 /150 | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16-10/300 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS350 | DCCS350 | YS31L | | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16-10/300 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS400 | DCCS400 | YS32L | | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16-10/300 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS500 | DCCS500 | YS34L | | DCM6-16/300 | DCH30 - 150/630 | DCH20 - 16/400 | DCH16-10/300 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCS600 | DCCS600 | YS36L | | | | | DCH16-10/300 | | |
| DCCS750 | DCCS750 | YS39L | | | | | DCH16-10/300 | | |
| DCCS1000 | DCCS1000 | YS44L | | | DCH55 - 400/1000 | | DCH16-10/300 | | |
