Características
Las terminales eléctricas de compresión están fabricadas de 100% Cobre electrolítico con recubrimiento de Estaño, lo cual permite un excelente flujo de energía y una excelente resistencia a la corrosión. Comprimen cables (Cobre y/o Aluminio).
Se usan en tableros de distribución y control eléctrico, en motores, transformadores, puestas a tierra, interruptores, arrancadores y en cualquier equipo eléctrico que acepte o entregue energía eléctrica.
*Medidas en pulgadas

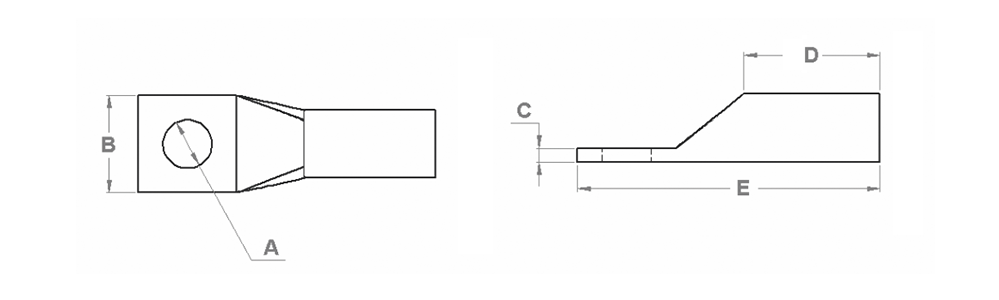

Dimensiones
| Código | Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Calibre del Cable AWG | Calibre del Cable mm² | Código de Color | Largo de Cable Desnudo (pulg) | (A) Barreno de Fijación (pulg) | (B) Ancho de Contacto (pulg) | (C) Espesor del Área de Contacto (pulg) | (D) Largo del Barril (pulg) | (E) Largo Total (pulg) |
|---|
| DCCL6-14 | DCCL6-14 | LCB6-14 | YA6C | #6 AWG | 14 | azul | 1-3/16 | 1/4 | 0.41 | 0.09 | 1.12 | 1.81 |
| DCCL4-14 | DCCL4-14 | LCB4-14 | YA4C | #4 AWG | 22 | gris | 1-3/16 | 1/4 | 0.50 | 0.09 | 1.12 | 1.87 |
| DCCL2-56 | DCCL2-56 | LCB2-56 | YA2C | #2 AWG | 35 | café | 1-5/16 | 5/16 | 0.61 | 0.11 | 1.25 | 2.29 |
| DCCL1-56 | DCCL1-56 | LCB1-56 | YA1C | #1 AWG | 50 | verde | 1-7/16 | 5/16 | 0.68 | 0.10 | 1.38 | 2.45 |
| DCCL1/0-56 | DCCL1/0-56 | LCB1/0-56 | YA25 | 1/0 AWG | 54 | rosa | 1-7/16 | 5/16 | 0.75 | 0.12 | 1.38 | 2.48 |
| DCCL1/0-38 | DCCL1/0-38 | LCB1/0-38 | YA25TC38 | 1/0 AWG | 54 | rosa | 1-7/16 | 3/8 | 0.75 | 0.12 | 1.38 | 2.61 |
| DCCL1/0-12 | DCCL1/0-12 | LCB1/0-12 | YA25N | 1/0 AWG | 54 | rosa | 1-7/16 | 1/2 | 0.81 | 0.11 | 1.38 | 3.05 |
| DCCL2/0-38 | DCCL2/0-38 | LCB2/0-38 | YA26 | 2/0 AWG | 70 | negro | 1-9/16 | 3/8 | 0.83 | 0.12 | 1.50 | 2.77 |
| DCCL2/0-12 | DCCL2/0-12 | LCB2/0-12 | YA26N | 2/0 AWG | 70 | negro | 1-9/16 | 1/2 | 0.83 | 0.12 | 1.50 | 3.21 |
| DCCL3/0-12 | DCCL3/0-12 | LCB3/0-12 | YA27 | 3/0 AWG | 86 | naranja | 1-9/16 | 1/2 | 0.91 | 0.13 | 1.50 | 3.06 |
| DCCL4/0-38 | DCCL4/0-38 | LCB4/0-38 | YA28TC38 | 4/0 AWG | 108 | morado | 1-1/16 | 3/8 | 1.02 | 0.14 | 1.62 | 2.98 |
| DCCL4/0-12 | DCCL4/0-12 | LCB4/0-12 | YA28 | 4/0 AWG | 108 | morado | 1-1/16 | 1/2 | 1.02 | 0.14 | 1.62 | 3.23 |
| DCCL250-12 | DCCL250-12 | LCB250-12 | YA29 | 250 kcmil | 127 | amarillo | 1-1/16 | 1/2 | 1.11 | 0.16 | 1.62 | 3.26 |
| DCCL300-12 | DCCL300-12 | LCB300-12 | YA30 | 300 kcmil | 150 | blanco | 2-1/16 | 1/2 | 1.20 | 0.16 | 2.00 | 3.69 |
| DCCL350-12 | DCCL350-12 | LCB350-12 | YA31 | 350 kcmil | 185 | rojo | 2-1/16 | 1/2 | 1.29 | 0.18 | 2.00 | 3.73 |
| DCCL400-12 | DCCL400-12 | LCB400-12 | YA32N | 400 kcmil | 203 | azul | 2-3/16 | 1/2 | 1.38 | 0.19 | 2.12 | 4.09 |
| DCCL400-58 | DCCL400-58 | LCB400-58 | YA32 | 400 kcmil | 203 | azul | 2-3/16 | 5/8 | 1.38 | 0.19 | 2.12 | 4.15 |
| DCCL500-58-1 | DCCL500-58 | LCB500-58 | YA34N | 500 kcmil | 240 | café | 2-5/16 | 5/8 | 1.52 | 0.23 | 2.25 | 4.32 |
| DCCL500-58-2 | DCCL500-58 | LCB500-58 | YA34 | 500 kcmil | 240 | café | 2-5/16 | 5/8 | 1.52 | 0.23 | 2.25 | 4.39 |
Herramienta de crimpado recomendada
| Código | Catálogo DROF | Catálogo Panduit | Catálogo Burndy | Mecánica Hexagonal 1 | Mecánica Hexagonal 2 | Hidráulica Hexagonal 1 | Hidráulica Hexagonal 2 | Hidráulica Hexagonal 3 | Hidráulica Hexagonal 4 | Hidráulica Indentación 1 | Hidráulica Indentación 2 |
|---|
| DCCL6-14 | DCCL6-14 | LCB6-14 | YA6C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | | DCH12-10/120 | | | |
| DCCL4-14 | DCCL4-14 | LCB4-14 | YA4C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | | | |
| DCCL2-56 | DCCL2-56 | LCB2-56 | YA2C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1-56 | DCCL1-56 | LCB1-56 | YA1C | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1/0-56 | DCCL1/0-56 | LCB1/0-56 | YA25 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1/0-38 | DCCL1/0-38 | LCB1/0-38 | YA25TC38 | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL1/0-12 | DCCL1/0-12 | LCB1/0-12 | YA25N | DCM-6/50 | DCM - 6/120 | DCH8-4/70 | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL2/0-38 | DCCL2/0-38 | LCB2/0-38 | YA26 | DCM3 - 10 /150 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL2/0-12 | DCCL2/0-12 | LCB2/0-12 | YA26N | DCM3 - 10 /150 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL3/0-12 | DCCL3/0-12 | LCB3/0-12 | YA27 | DCM3 - 10 /150 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL4/0-38 | DCCL4/0-38 | LCB4/0-38 | YA28TC38 | DCM3 - 10 /150 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL4/0-12 | DCCL4/0-12 | LCB4/0-12 | YA28 | DCM3 - 10 /150 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | | DCHR16-16/150 | DCHR16-16/200 |
| DCCL250-12 | DCCL250-12 | LCB250-12 | YA29 | DCM3 - 10 /150 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | DCH30 - 150/630 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL300-12 | DCCL300-12 | LCB300-12 | YA30 | DCM3 - 10 /150 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | DCH30 - 150/630 | DCHR16-16/150 | DCHR16-16/200 |
| DCCL350-12 | DCCL350-12 | LCB350-12 | YA31 | DCM6-16/300 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCL400-12 | DCCL400-12 | LCB400-12 | YA32N | DCM6-16/300 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCL400-58 | DCCL400-58 | LCB400-58 | YA32 | DCM6-16/300 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | DCH30 - 150/630 | DCH16 - 10/240 | DCHR16-16/200 |
| DCCL500-58-1 | DCCL500-58 | LCB500-58 | YA34N | DCM6-16/300 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | DCH30 - 150/630 | DCH16 - 10/240 | |
| DCCL500-58-2 | DCCL500-58 | LCB500-58 | YA34 | DCM6-16/300 | DCM - 6/120 | | DCH16 - 16/300 | DCH12-10/120 | DCH30 - 150/630 | DCH16 - 10/240 | |
